DIY Geometric Wood Feature Wall with Floating Bench

Jan, 16, 2017

You guys have been asking and asking and I’m finally dishing all the deets on the wood wall in our laundry room! It was definitely a labor of love but actually a lot easier than I thought it was going to be.

I knew I wanted something unique above the floating bench and after tons and tons of research and brainstorming I got the perfect idea and was determined to make it come to life. The laundry room was definitely a group effort between me, Dan and my FIL but this piece was something I made all on my own, and I’m pretty freakin proud of it.

DIY Geometric Wood Feature Wall with Floating Bench

DIY Wood Feature Wall

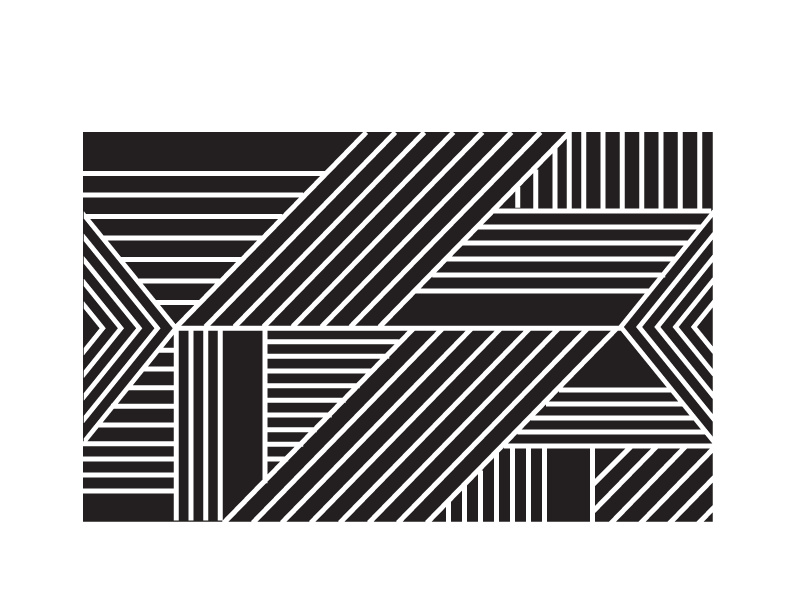

Like any good project, it all started on Pinterest where I found this image from Bells and Whistles. Hellllooo gorgeous.

Wood Feature Wall Inspo

As soon as I saw it I knew this would be my inspiration. Now, I just had to figure out how to make it.  I was chatting with some of my bloggy friends and telling them my idea, and one of them shared this post with me from Mandi over at Vintage Revivals.

Goddess of all DIY. I love and follow her but somehow missed this post. It was essentially the same concept for what I wanted to make and as I kept reading, I realized she was inspired by the same exact space, just a different photo. Turns out I was just a year and a half late to the game 😉


*affiliate links included*
3/4″ plywood
Stain – I used Special Walnut and Golden Oak
Measuring Tape
Black Foam Brushes

Let’s start with the bench first and then I’ll get into the feature wall above it.

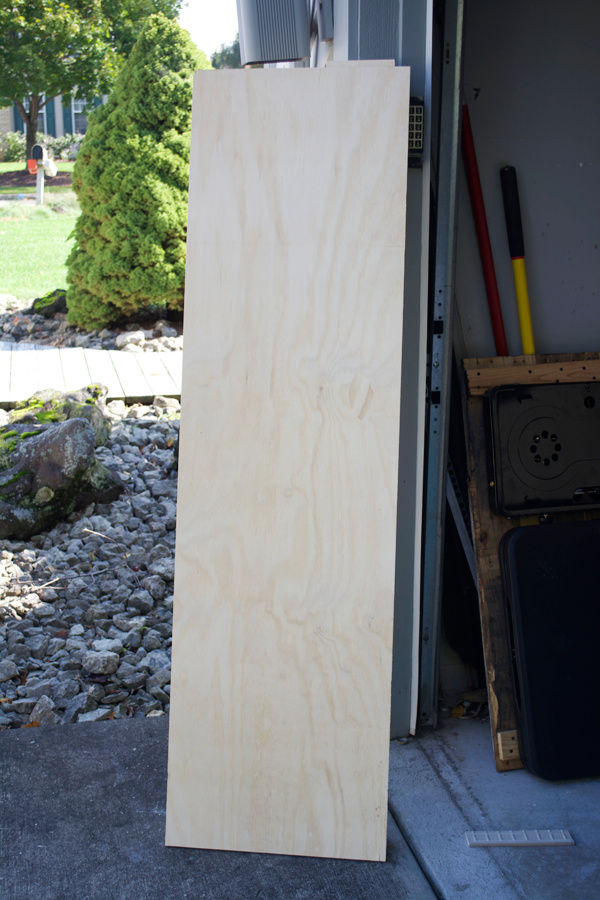

I bought a piece of 3/4 inch plywood from Home Depot and had them cut it to the size we needed for the top of the bench. Then I also had them cut another piece from the same board that was the same length and about 6 inches wide.

Wood Floating Bench

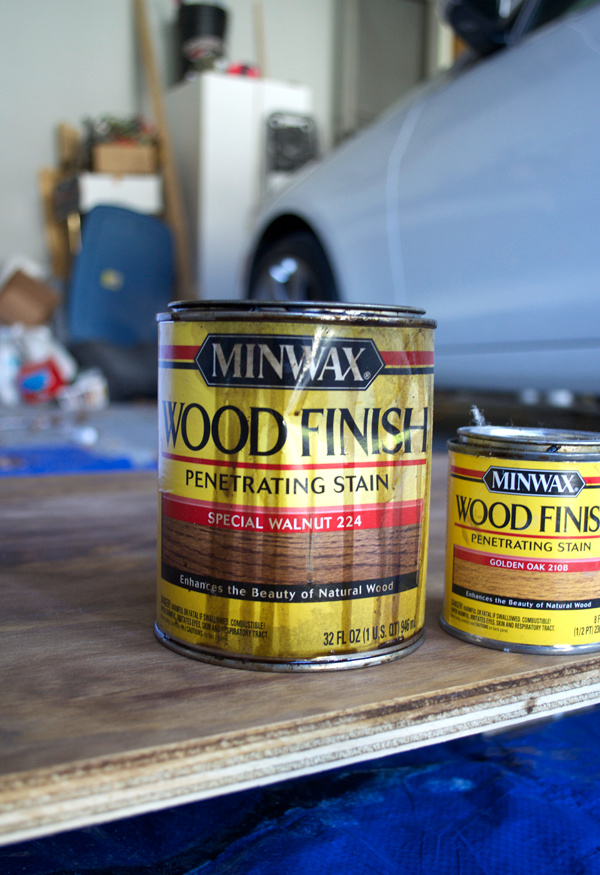

Stain your wood. This is the magic combo of stain I used for this whole project. I applied the Special Walnut first and then the Golden Oak and then another light coat of the Special Walnut.

Wood Stain for Mudroom Bench

Stained Floating Bench


Once that was dry I applied a couple coats of Poly.

Polycrylic Topcoat dor Wood Projects


To install the bench you want to measure up from the floor how high up the seat will be. Make a few marks that you can connect with your level


For the back wall we used a 2×4 for the support and used a level to make sure it was straight. Then we screwed a few screws into the studs.

How to Make A Floating Wood Bench

For the sides, since we were screwing into the cabinets (which are laminate and not real wood) we used some smaller pieces.

Support Wood for DIY Floating Bench

Because the laminate might not have the strongest hold, we used some nuts and bolts to give it some extra support.

DIY Floating Bench


If your space was smaller and this was going to be more of a bench for show, you could just put your one piece of plywood on top of your supports and be good to go, but since this bench was actually going to be used a lot, we needed it to be strong. We had another piece of plywood left from the board they cut for us that we put down first.

DIY Floating Wood Bench

Supported DIy Floating Bench


We put the stained piece on top of that and it was still pretty shaky and sank pretty bad in the middle. So we decided to lay a couple 2x4s across it as well.

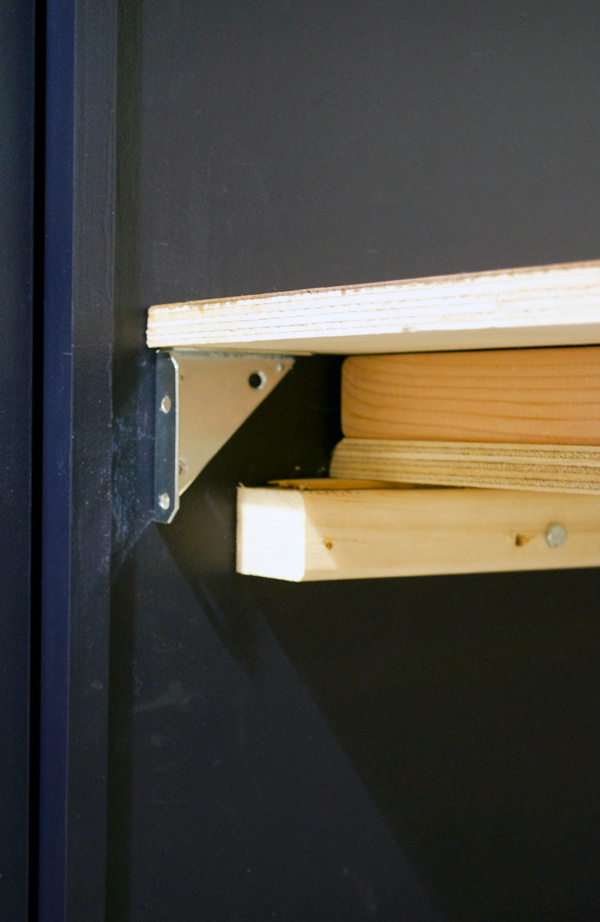

We drilled those into the existing supports and then laid the stained top down. Then we used these brackets so we would have something to screw the front piece into. We used four all together.

Bracket Supports for Floating Bench


Once those were screwed in, the front piece was pretty secure but we used our nail gun to shoot a couple extra nails in there on either end to make sure it stayed in place.

Installing Floating Bench

Luckily we didn’t have any vents or anything underneath we had to worry about, but if you had something like that or a radiator you had to build around this post on How to Build a Radiator Window Bench is super helpful!

So if you just wanted a floating bench, there ya have it! But that bare wall was just screaming for something, so let’s move onto my pride and joy.


1/2″ or 3/4″ Plywood
1x2x8 Select Pine Boards
DAP Rapid Fuse Wood Adhesive
Miter Saw
Black Foam Brushes

I started out with plywood for this one too, but this time it was 1/2″ thick. Looking back 3/4″ probably would have been better, since it got so heavy once all the wood pieces were glued on, but it still worked just fine.

So I had my plywood cut to the size I wanted and then had to figure out what type of wood I was going to use to make the pattern. I think I was in Home Depot for about 2 hours that night ha. I even had my cart loaded up with thin pieces of poplar planks that were super light weight and would have worked great. But poplar has a weird yellow tint to it and they all kind of varied in color and I was scared they wouldn’t stain well. So I took those back to the shelf, and kept staring at more wood.

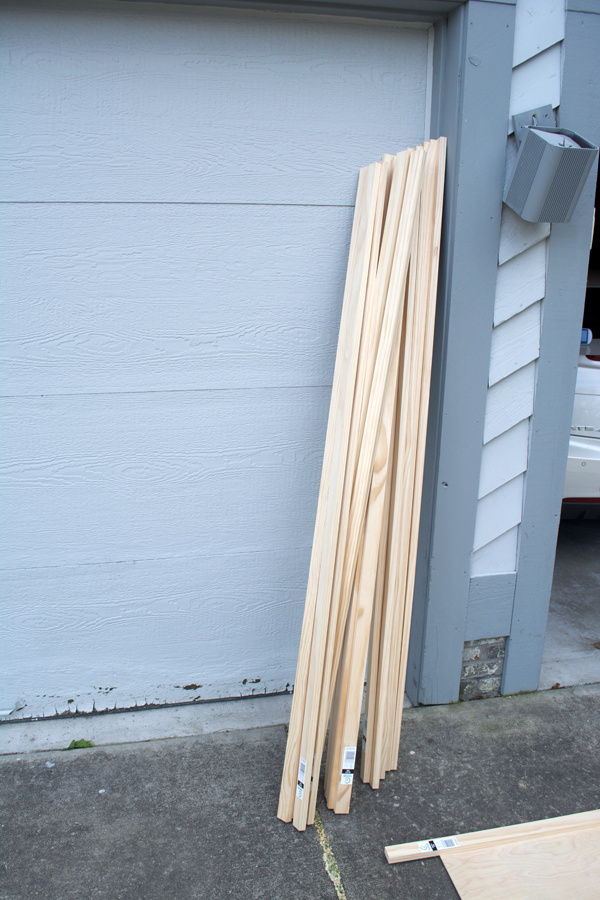

I ended up going with these 1x2x8 pieces of select pine. I bought 15 which was a total guess but ended up being the perfect amount.

Before I started building I planned out my design in Illustrator. Honestly, I  just kinda winged it and played around with different patterns. I started with the two symmetrical triangular designs on the ends and then went from there. We didn’t worry about angles at this point, I just needed something to work off of.

Wood Feature Wall Plans

I printed this out and brought it outside with me so I had it on hand for easy reference. Then I got my pine boards, plywood and miter saw ready to go. I made all my cuts with this guy and they were all either 90° or 45° which made things pretty easy.

Miter Saw Used for Wood Feature Wall

Pine Wood For Wood Feature Wall

First things first was drawing two lines on the plywood marking the horizontal and vertical center to work from. Then I framed the plywood.

Plywood Feature Wall Base

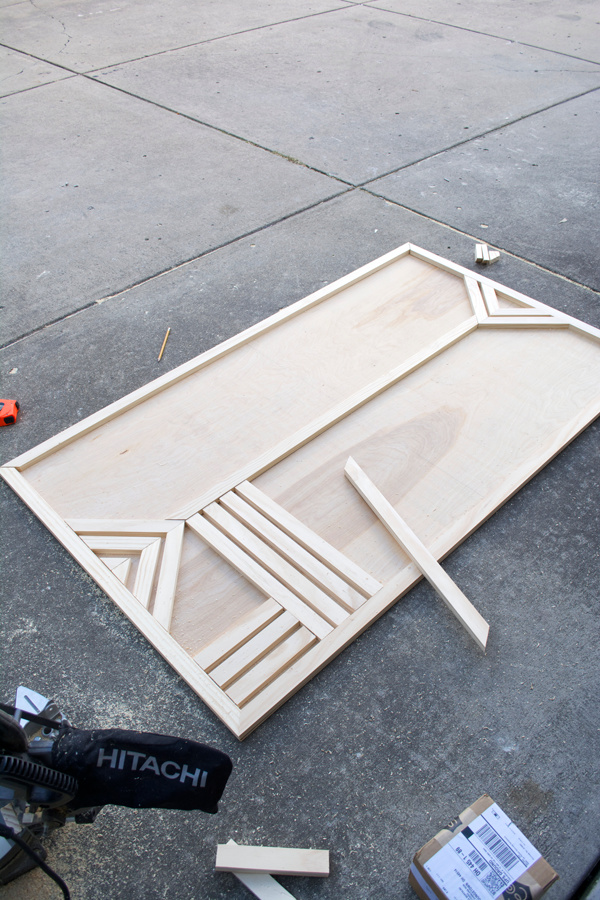

Then I started with the triangle pattern on one side. Start with one piece, and then grab another board and mark it’s size with a pencil so you know they’re the same. This will help give you a guide for where to cut and know what angle you need. I used a scrap piece of wood that was a littler smaller than an inch thick to measure the spacing between each board.

Wood Feature Wall Tutorial

Once this side was done, I measured each of these pieces against a new board and made pencil marks, so I could easily replicate the same design for the other side.

I wasn’t gluing my pieces as I went since I wanted to see how it all looked first, which was actually a good idea because I was able to use pieces as guides to replicate when I needed more than just one of the same size.

Geometric Wood Feature Wall

Once I did the other side with the triangles, I placed one long board straight down the middle which gave me the perfect piece to work off of. Then I just started adding in the rest of the boards, using my design I created as a reference.

Building Process of Wood Feature Wall

Once you get in a groove it goes pretty quickly. And it’s so fun seeing it all come to life. I honestly had no idea how it was going to turn out. But once I started working, I got super stoked when I realized my idea was actually going to work and it was looking really cool.

Wood Accent Wall DIY

I probably finished all the cuts in about two hours which was wayyy faster than I thought it was going to take.

Staining Process of Wood Feature Wall

At this point nothing was glued down and I moved it into our garage to work on the next day. Probably the most productive nap time I’ve ever had ha. Eloise was cooperating that day 😉

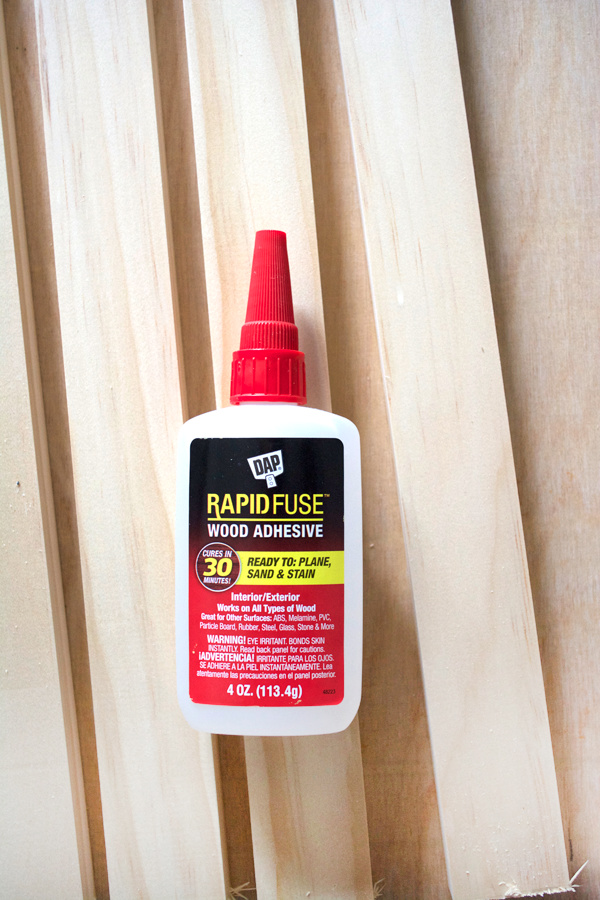

Ok so the glue I used is amazing. And if you have a wood project coming up you have to use it. I discovered it at Haven this past summer and was blown away by it. It dries so fast and holds so well. It’s by DAP and it’s their Rapid Fuse Wood Adhesive. I still used some small clamps along the way as I glued everything down, but only needed to leave them on there for a minute or so to make sure it bonded. I started with the frame along the outside and then did my triangles on either side and the long piece across the middle to make sure everything was centered and lined up from there. A couple pieces ended up being a little too short or too long so I adjusted them and luckily had a couple scraps left over to make new cuts.

Wood Glue Adhesive

Be careful your glue doesn’t glob out from under the boards. It dries super fast and it will look discolored when you stain over it.

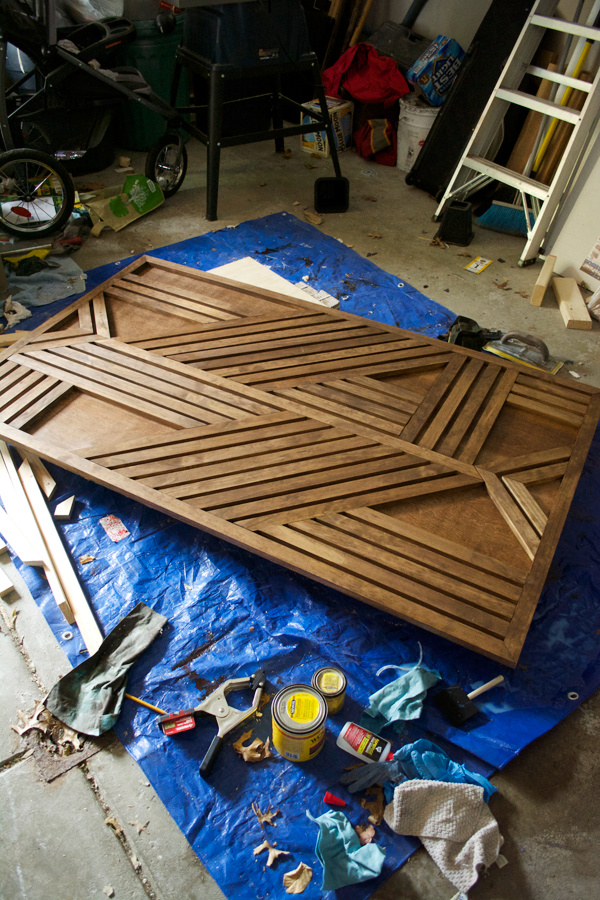

Once they were all glued, I went right into staining it. I found that using a couple of different sized black foam brushes was the easiest way to get into the crevices.

Stained Wood Feature Wall

After some special walnut and golden oak I gave it one coat of poly and let it dry overnight. Then it was time to bring this baby inside! It fit like a glove, thank god.  We used the nail gun to put about 4-5 nails into the studs. You can hardly even see them but they were just enough support to hold it up against the wall.

I seriously couldn’t be more in love with it and have already been plotting more ways I can use a similar pattern/treatment somewhere else in our house. It gives our laundry room that unique touch I wanted and it’s even better knowing I made it all myself.

MCM Wood Feature Wall

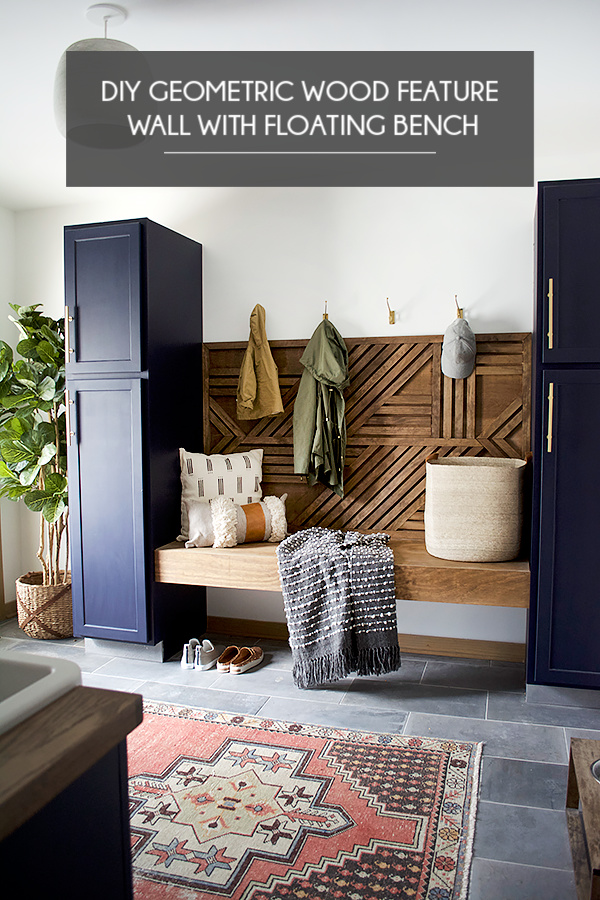

Geometric Feature Wall With Floating Bench

Geometric Wood Wall

And don’t forget to check out the rest of our laundry room makeover if you missed it! I know that was a lot of info. So if I missed anything or didn’t explain something well, let me know!

DIY Geometric Wood Feature Wall With Floating Bench



  1. Reply

    Michael Graves

    May 1, 2022

    My wife and I just finished this for our entry way. Can’t thank you enough for the idea and walk through!

    • Reply


      May 1, 2022

      Yay! I’m so happy to hear that!

  2. Reply

    Scott Jackson

    June 26, 2020

    Awesome Job!! Ours is in progress now. Just wondering what the measurements were on your wall piece?

  3. Reply

    Jacob White

    September 8, 2019

    What size did the plywood end up being?

    • Reply


      December 26, 2019

      I agree, what was the end dimensions??

    • Reply

      Scott W Jackson

      June 27, 2020

      I’m also wondering. What size plywood did you guys go with in the wall?

  4. Reply


    June 10, 2019

    Did you sand before you stained the back piece? It seems hard with them glued down…Also, did you wipe as you stained or just brush on without wiping off?? Hope you can help!

    • Reply


      June 17, 2019

      I did not sand the back piece, it wasn’t needed. I should have stained it first but I did not. It would be easiest to stain the back first and then attach the rest of it. You don’t need to use a lot of stain, so I only wipe down small amounts that glob up if needed!

      • Reply


        July 21, 2019

        Thanks! I finished it and it is on display in my entryway! I love it, thanks for the tutorial!

  5. Reply


    May 15, 2019

    This is insanely gorgeous!! Phew!!

  6. Reply


    February 23, 2019

    This is so great! I can’t wait to try something like this out. When this was finished, what were the dimensions of the back piece?

  7. Reply

    Malia Young

    November 15, 2018

    Hi! What size boards did you do for the side supports on the floating bench? 2x2s? Thanks so much! Looks AWESOME!!!

    • Reply


      November 15, 2018

      We used 2x4s!

      • Reply

        Malia Young

        November 15, 2018

        Step 5 says you used “smaller pieces” for the cabinet sides than the 2×4 on the back support. Also, adding the extra plywood and 2x4s on the bench top, how tall is the final bench top?

        • Reply

          Breanna Bertolini

          November 16, 2018

          Oops sorry! Yes they were some scrap 2x2s we had left over. Total bench height is 23″ 🙂
